K-2020 A DATA SHEET
New
Vertical Lifeline with Extended Top Bracket (Integrated Shock Absorber)
K-2020 A
All components are manufactured from AISI 316 grade stainless steel, The system provides safe access to elevated work areas, The SRG-1 A guided type fall arrester travels freely along the steel cable in both upward and downward directions and automatically locks onto the cable in the event of a fall.
Product Specifications
• All components are manufactured from AISI 316 grade stainless steel.
• The system provides safe access to elevated work areas.
• The SRG-1 A guided type fall arrester travels freely along the steel cable in both upward and downward directions and automatically locks onto the cable in the event of a fall.
• The impact force generated during a fall is absorbed by the FA-50 energy absorber, minimizing the load transmitted to the user.
• The full body harness used with the system shall comply with EN 361, EN 358, EN 813, and EN 12277 standards.
• The product is supplied as a complete system and is not available for sale as individual components.
Ürün Bileşenleri

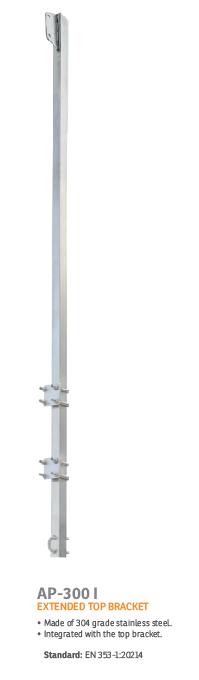

• AP-300 I Ladder Extension

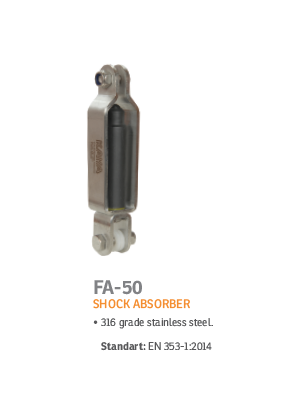

• FA-50 Energy Absorber

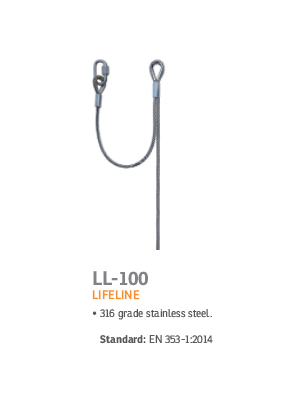

• LL-100 Lifeline Wire Rope

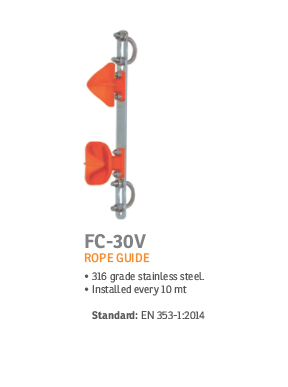

• FC-30 V Rope Guide

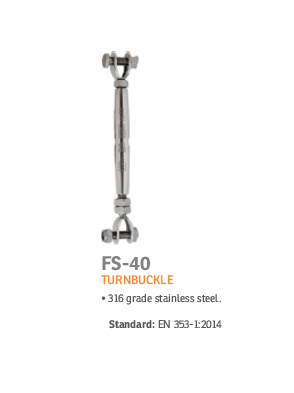

• FS-40 Tensioner

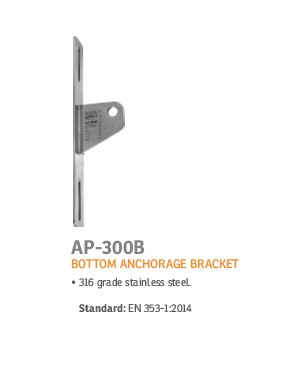

• AP-300 B Bottom Anchor Plate

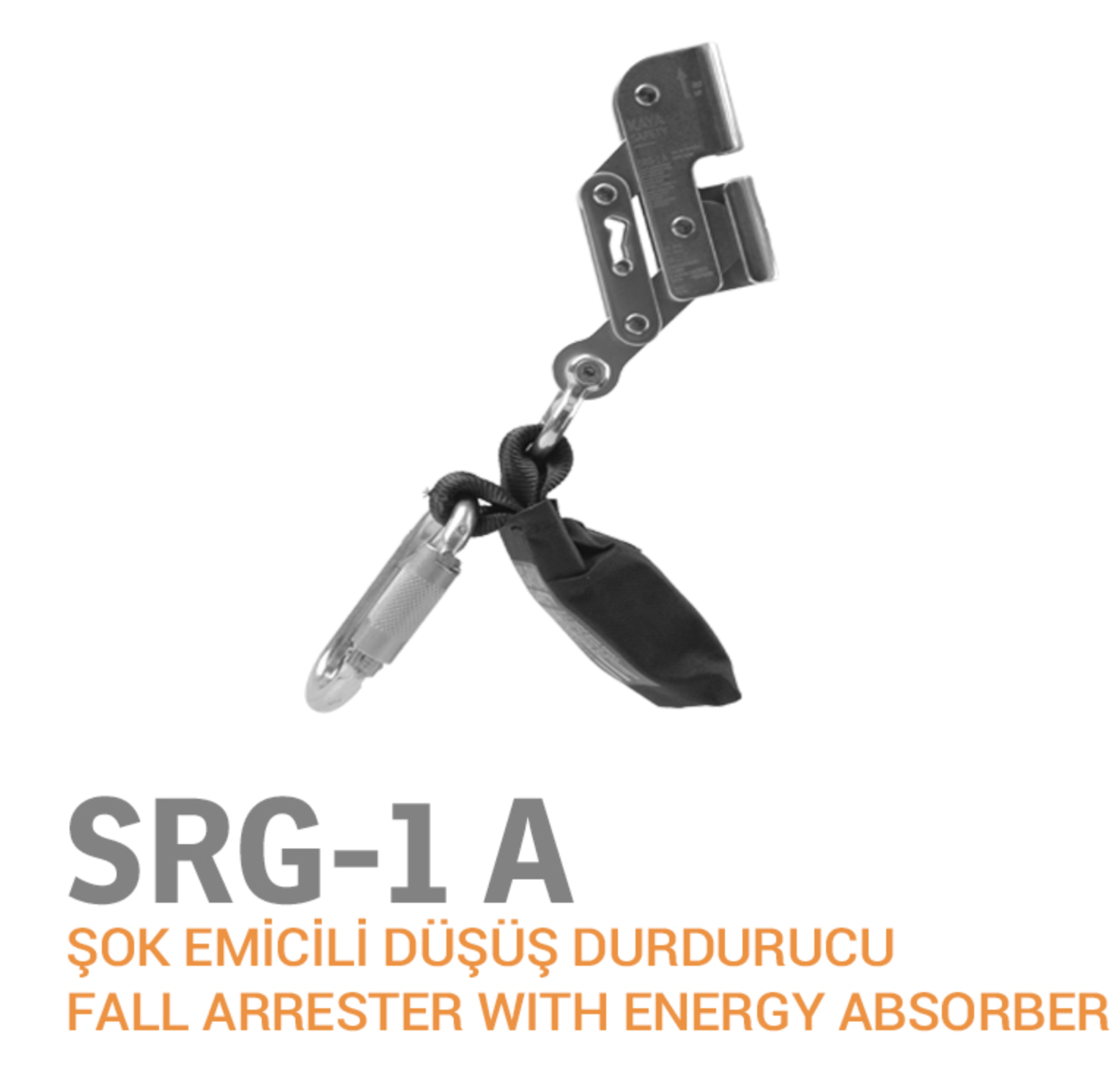

• SRG-1 A Fall Arrester with Energy Absorber
Uzunluk: 3 -…. m (Istenilen metraja göre üretim yapılabilir.)
Standart: EN 353-1:2014+A1:2017
