K-2040 MONOPOL DATA SHEET
Vertical Lifeline (Energy Absorber Integrated)
K-2040 MONOPOL
Long service life even in excessively corrosive environments thanks to its stainless steel and seamless components, Shock absorber which damps the dynamic load on the personnel, product and structure after fall
Product Specifications
• Long service life even in excessively corrosive environments thanks to its stainless steel and seamless components
• Shock absorber which damps the dynamic load on the personnel, product and structure after fall
• Adjustable indicator system displaying the ideal tension on lower anchor
• Ability to install the lifeline with an inclination of 15°
• Ability to be used up to -30°C
• Intermediate anchor at any desired meter
Components

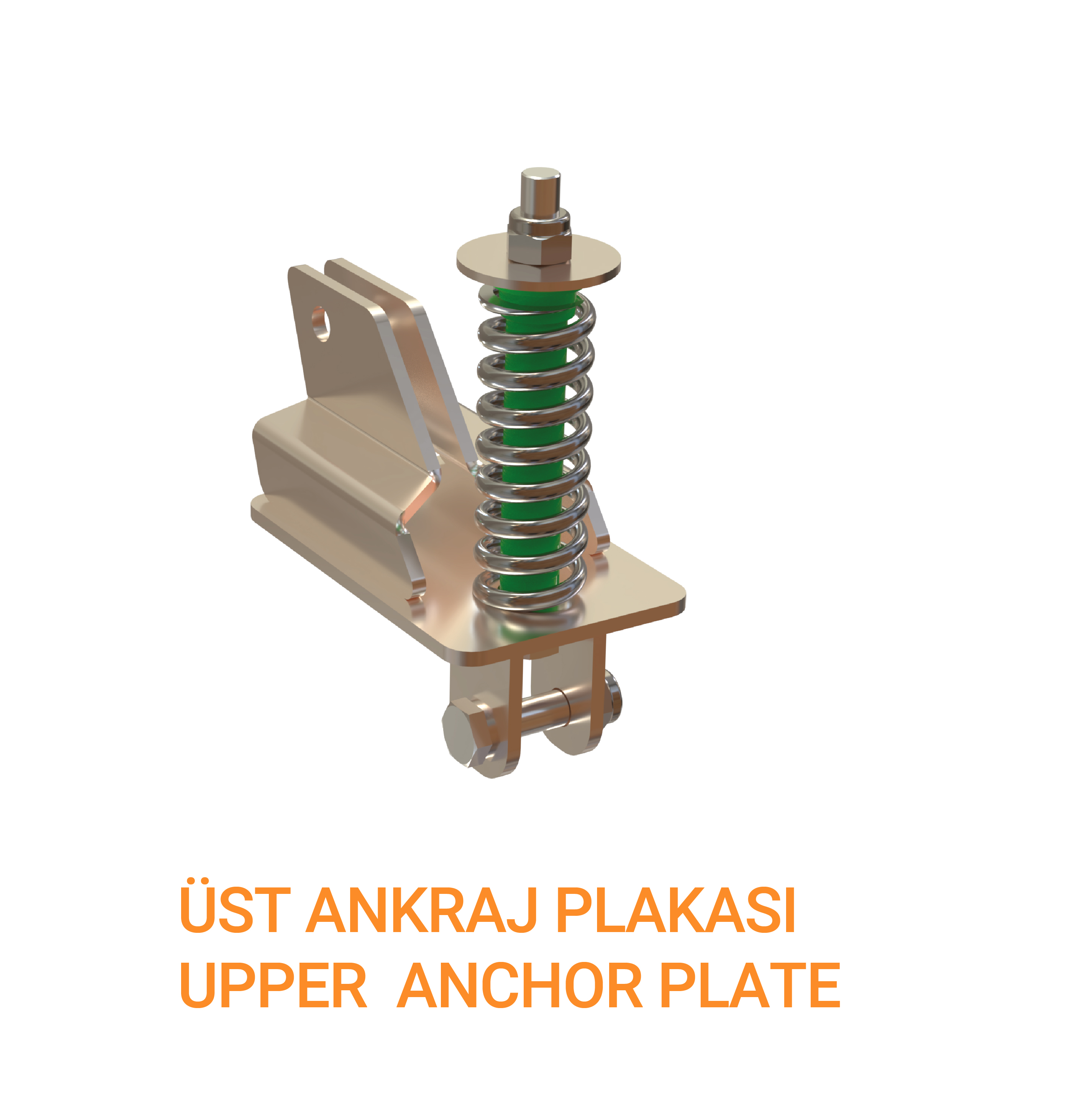

• Upper Anchor Plate

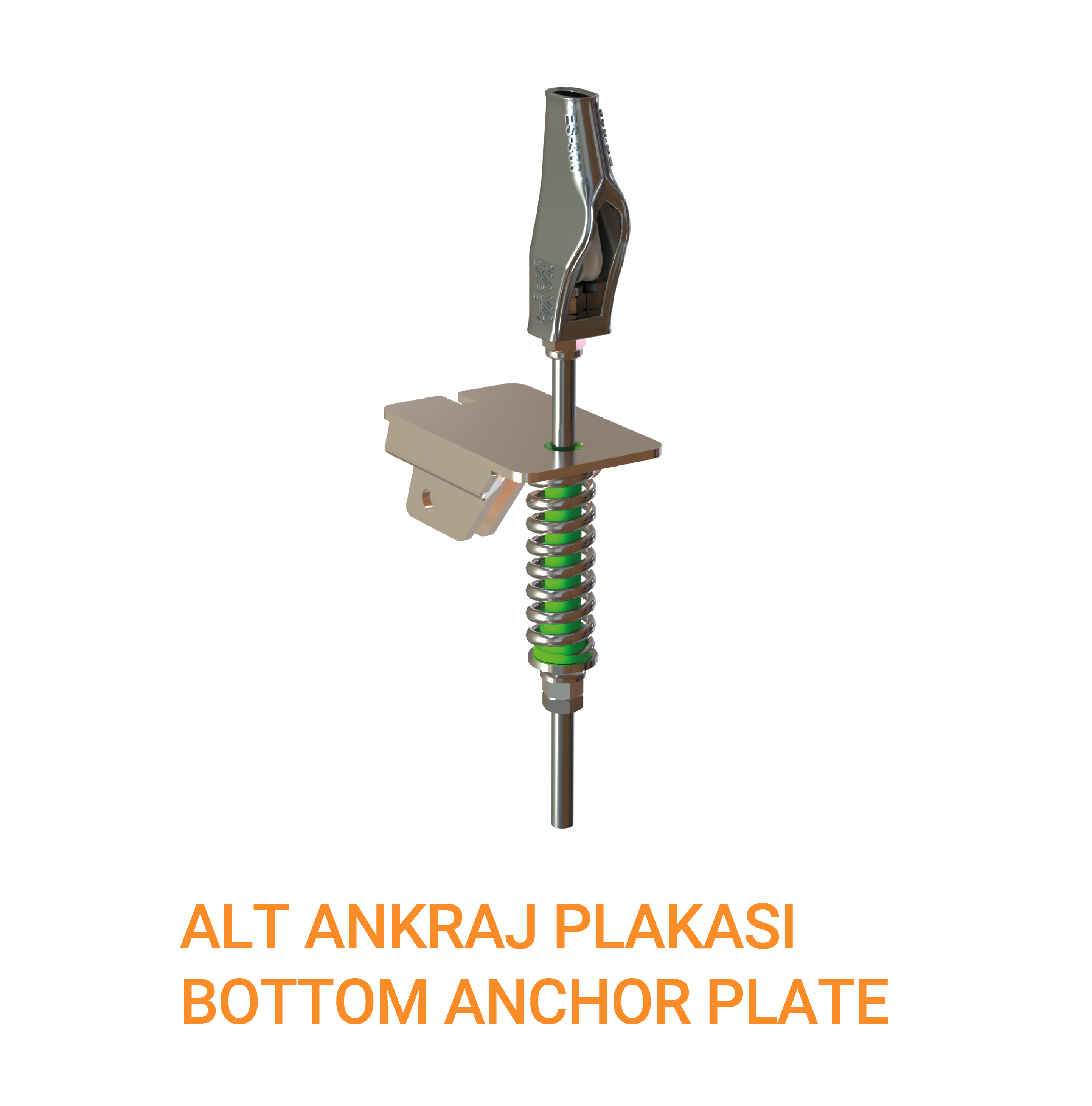

• Bottom Anchor Plate
• K-2040 Energy Absorber
• Lifeline Wire Rope

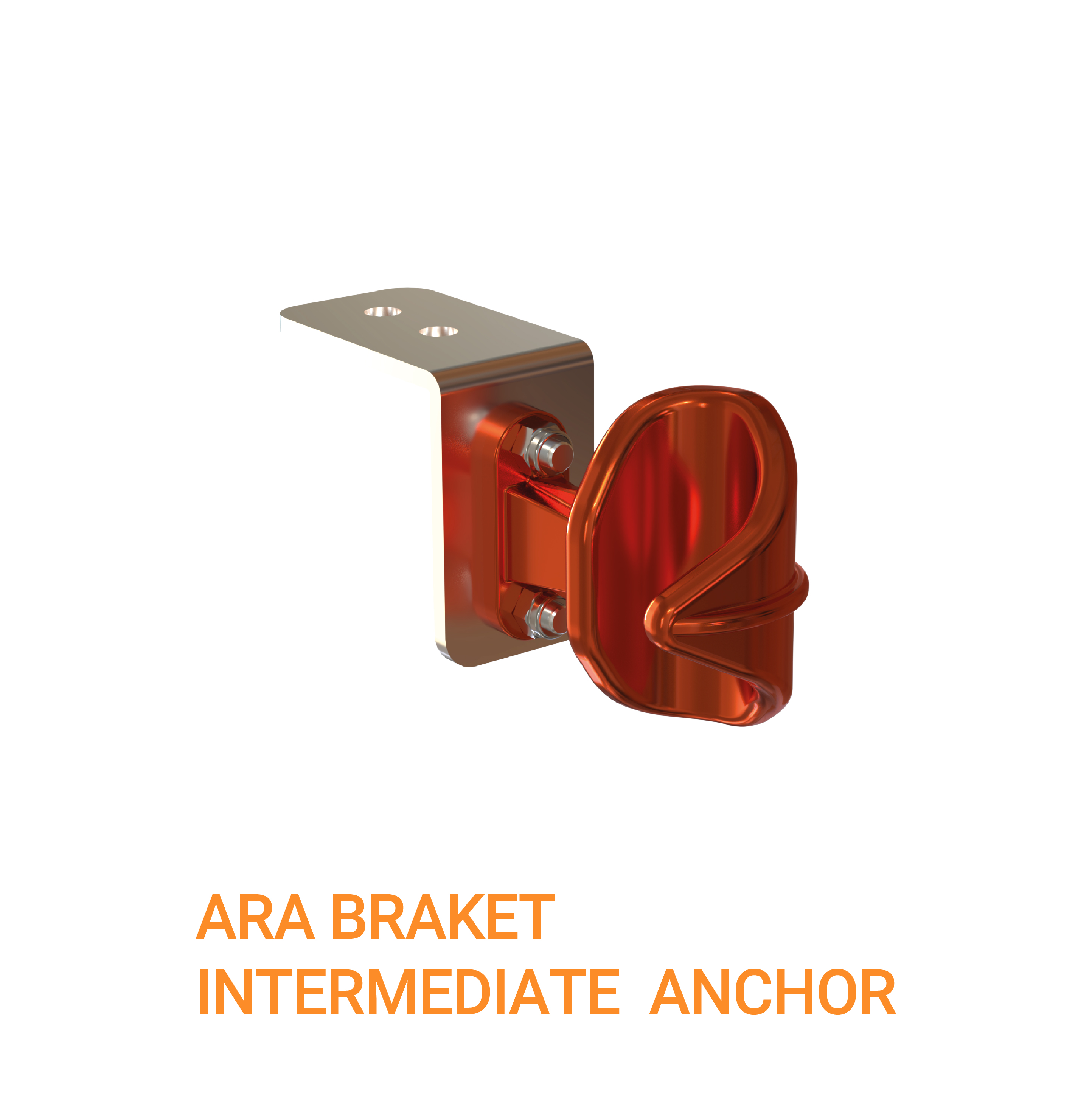

• Intermediate Anchor

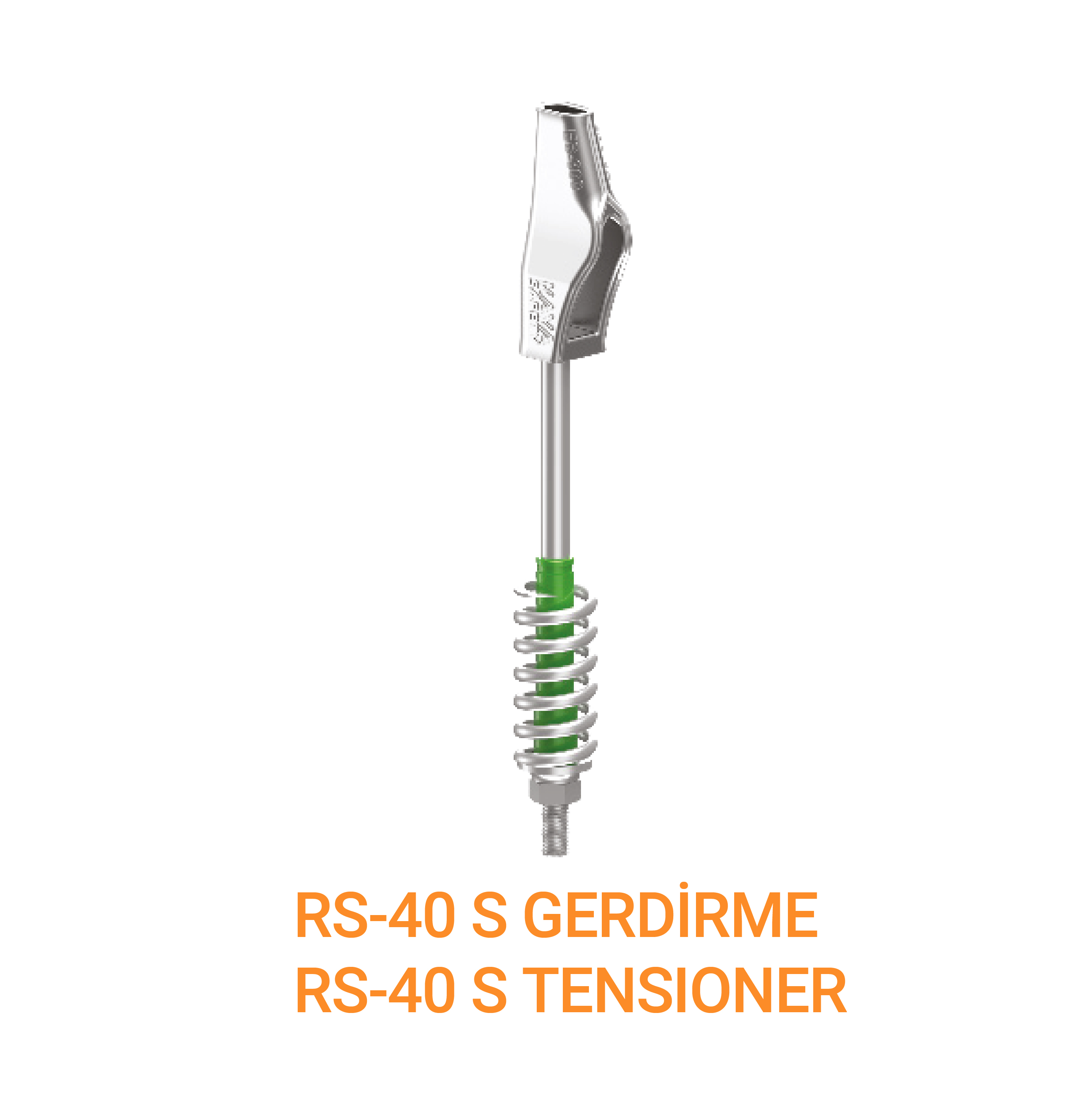

• RS-40 S Tensioner

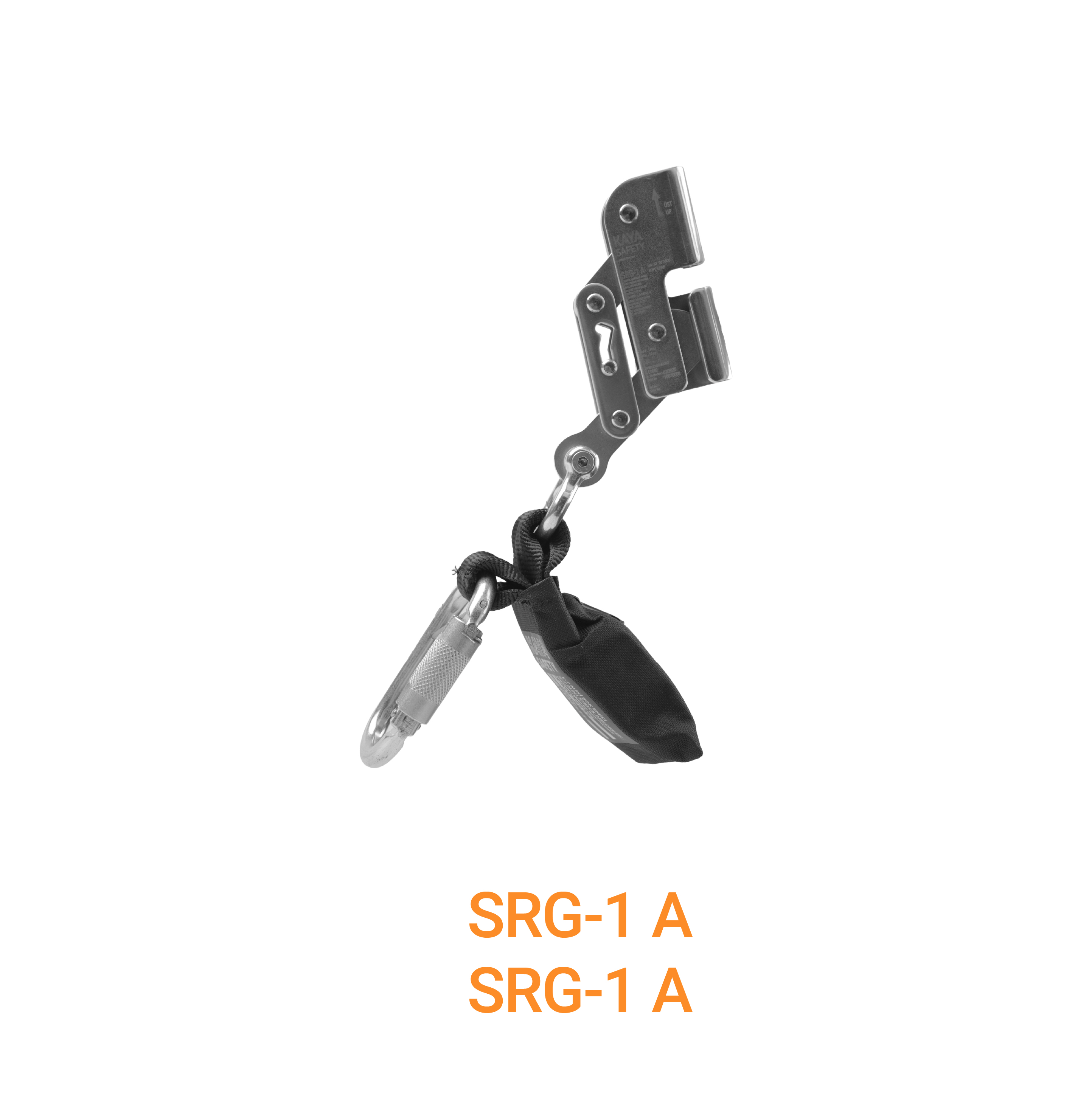

• SRG-1 A Guided Type Fall Arrester
Length: From 3 mt to desired length

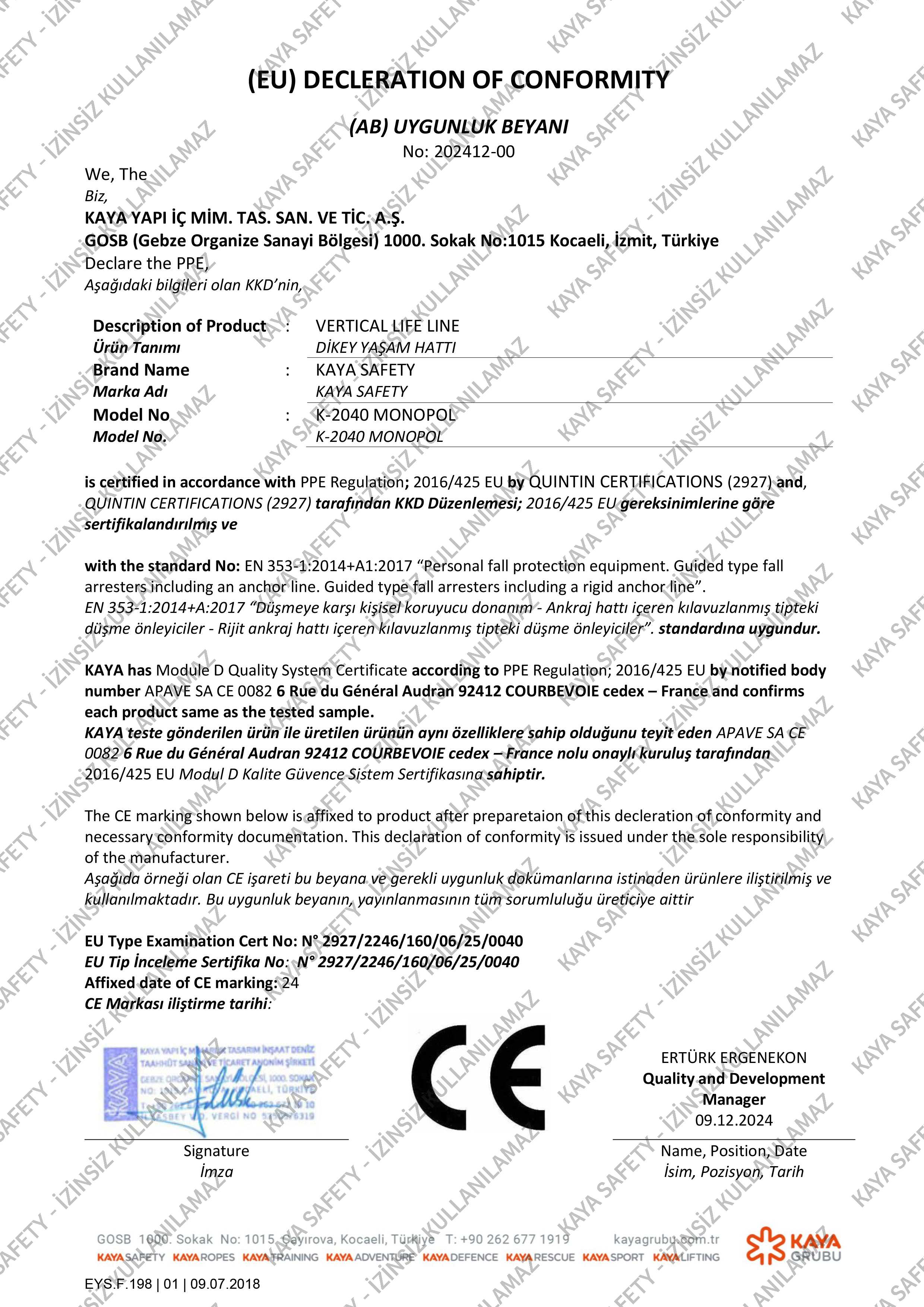

Standard: EN 353-1:2014+A1:2017
Material: 316 Grade Stainless Steel
Note: Only SRG-1 A steel rope grab should be used with this vertical lifeline wire rope.
