K-2030+ A DATA SHEET
Ladder extension system designed for applications requiring safe access above the top rung of a ladder, Stainless steel, weld-free components provide a long service life, even in highly corrosive environments, The integrated energy absorber reduces dynamic loads transferred to the user, structure, and lifeline system in the event of a fall.
• Ladder extension system designed for applications requiring safe access above the top rung of a ladder.
• Stainless steel, weld-free components provide a long service life, even in highly corrosive environments.
• The integrated energy absorber reduces dynamic loads transferred to the user, structure, and lifeline system in the event of a fall.
• An adjustable tension indicator located at the lower anchor point ensures the lifeline is installed with the correct tension.
• The lifeline system can be safely installed on slopes of up to 15°.
• Suitable for use in temperatures as low as -30°C.
• Equipped with intermediate cable support brackets designed to stabilize and secure the steel cable in long-span installations.
• RP-300 IS Ladder Extension
• RA-50S Energy Absorber

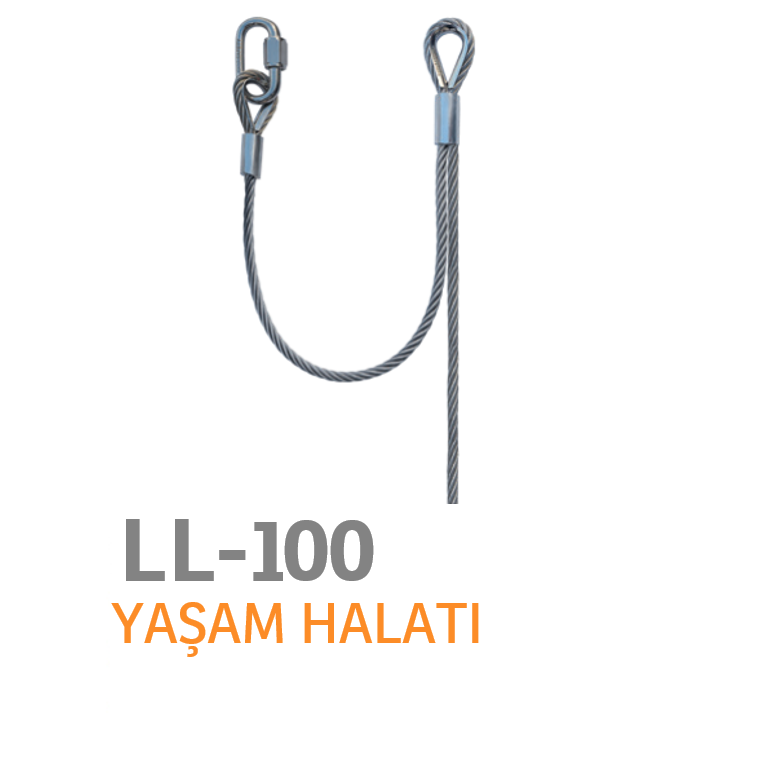

• LL-100 Lifeline Wire Rope
• FC-30 V Rope Guide
• RP-300 BS Bottom Anchor Plate
• RS-40 S Tensioner & Indicator
• SRG-1 A Fall Arrester with Energy Absorber
Note: Only SRG-1 A steel fall arrester should be used with this vertical lifeline wire rope
