K-2035 DECLARATION OF CONFORMITY
• Advantage of control before every use thanks to shock absorber on robe grab
• Special design against risks caused by rope weight
• Long service life even in excessively corrosive environments thanks to its stainless steel and seamless components
• Shock absorber which absorbs the dynamic load on the personnel, product and structure after fall
• Adjustable indicator system displaying the ideal tension on lower anchor
• Ability to install the lifeline wire rope with an inclination of 15°
• Ability to be used up to -30 ° C
• Intermediate rubber guide preventing the wind impact at every 10 meters and PA main guide apparatuses at every 30 meters
Note: Only F-5 A steel rope grab should be used with this vertical lifeline wire rope.
Length : 3 -... m
Material: 316 Grade Stainless Steel
Standard: EN 353-1:2014+A1:2017
Components
• RP-300 ASL Upper Anchor Plate
• RP-300 BS Bottom Anchor Plate/
• LL-150 Lifeline Wire Rope

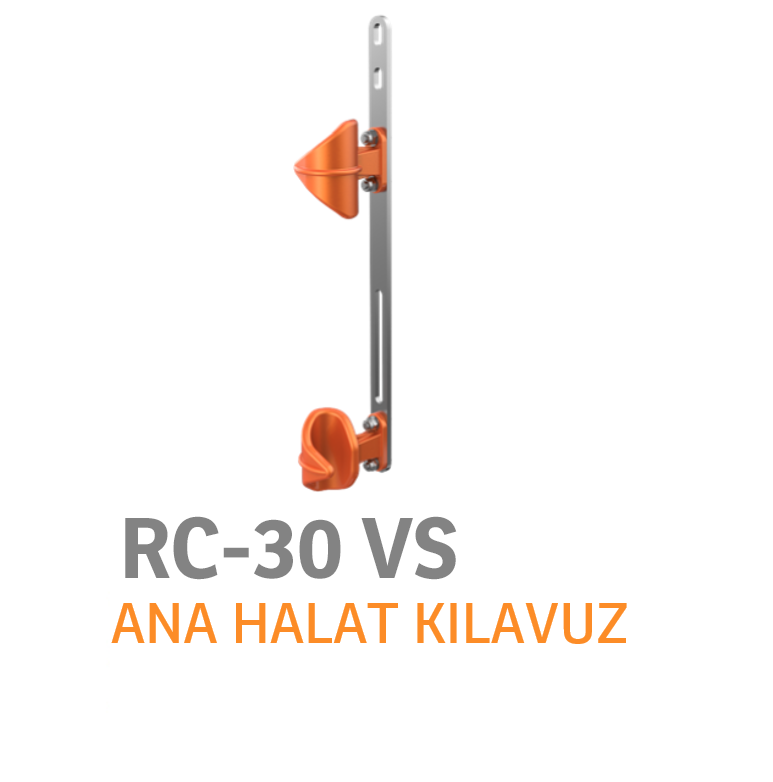

• RC-30 VS Main Rope Guide
• RS-40 S Tensioner
• F-5 A Guided Type Fall Arrester
