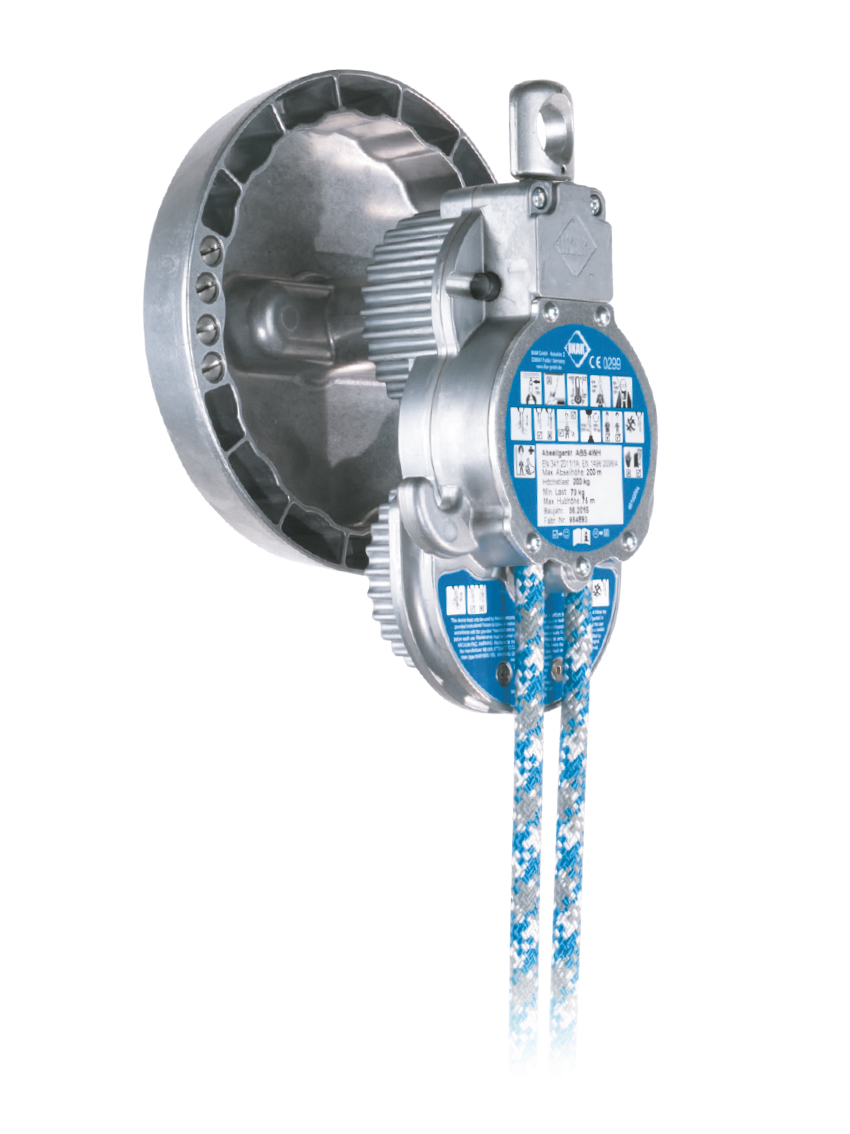

ABS 4 WH DATA SHEET
Rescue Device
ABS 4 WH
The most practical way to rescue suspended personnel with a integrated wheel or handle, Telecom/energy mast/towers, cranes, residences, business towers, gas/oil exploration and drilling rigs etc. The ideal solution for escape in case of emergency requiring high evacuation such as, Double action carabiner with automatic locking
Product Specifications
• The most practical way to rescue suspended personnel with a integrated wheel or handle
• Telecom/energy mast/towers, cranes, residences, business towers, gas/oil exploration and drilling rigs etc. The ideal solution for escape in case of emergency requiring high evacuation such as
• Double action carabiner with automatic locking
Number of Users: 2
Min. Working Load (kg): 50
Max. Working Load (kg): 200
Test Load: 250
Max. Lifting Height (m): –
Max. Descending Height (m): 200
Static Strength (kN): 20
Max. Descending Distance under Load (m): 3,800
Min. Descending Distance under Load (m): 15,200
Max. Descending Speed (m/s): 1.5
Device Weight (kg): 3.18
Dimensions (mm): 250 x 200 x 128 mm
Body Material: Aluminium
Operating Temperature: -40°C / +50°C
Length (m): 20–150
Standards: EN 341:2011/1A, EN 341:2011/1B, EN 1496:2017/A, ANSI/ASSE Z359.4-2013
Min. Working Load (kg): 50
Max. Working Load (kg): 200
Test Load: 250
Max. Lifting Height (m): –
Max. Descending Height (m): 200
Static Strength (kN): 20
Max. Descending Distance under Load (m): 3,800
Min. Descending Distance under Load (m): 15,200
Max. Descending Speed (m/s): 1.5
Device Weight (kg): 3.18
Dimensions (mm): 250 x 200 x 128 mm
Body Material: Aluminium
Operating Temperature: -40°C / +50°C
Length (m): 20–150
Standards: EN 341:2011/1A, EN 341:2011/1B, EN 1496:2017/A, ANSI/ASSE Z359.4-2013
